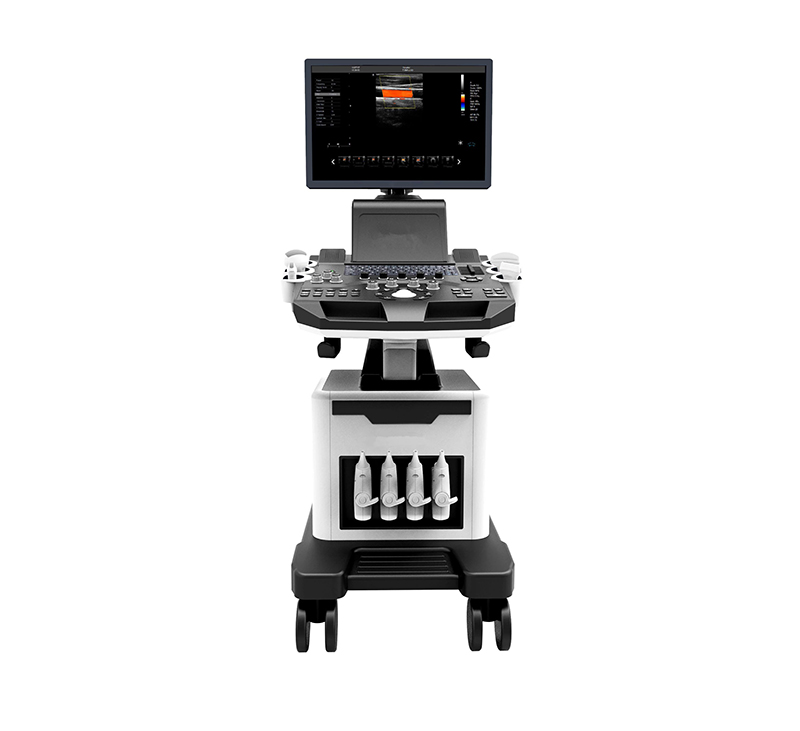

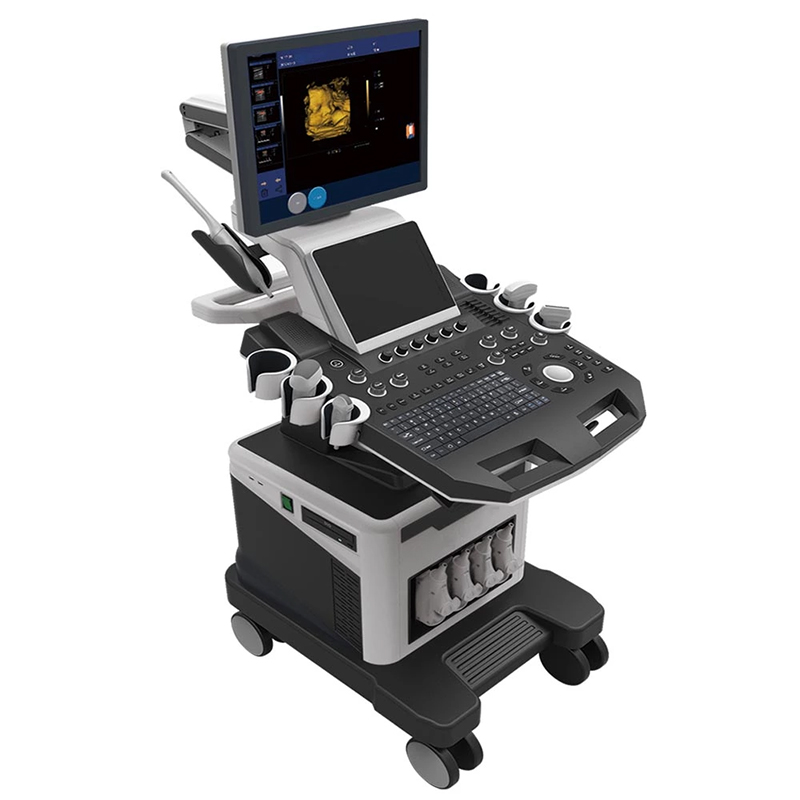

3D/4D Ultrasound Color Doppler
| AP- C80PLUS | |
| Computer specs | Windows 7 Embedded operation system (CN,EN language) 19’’ medical monitor 4 Probe sockets Automatic Probe Recognition |
| Package Weight/Dimension | 130 KG / 102*73*153cm |
| Imaging Modes | B, 2B, B+M,M, 4B, 2D, 3D, 4D, Color/PW/CW B/C, B/C/PW, B/PW |
| Features | Preset: Speckle Reduction Imaging, Tissue Harmonics Imaging,
0-270DB dynamic range,
PRF 4D, Automatic Image Optimization, |
| DICOM Modes | Store, Print, Working list, Storage Commitment, Structured Reports |
| Export Options | DICOM, Ethernet, JPG/BMP/PNG,AVI, Network Storage, USB Memory Stick. |
| Input/Output | VGA, 2 USB Ports, Ethernet, Video |
| Transducer Types | Convex, Linear, Sector Phased, Micro Convex, 4D Volume Convex, Trans-vaginal |
| Applications | Abdominal, OB/GYN, Urology, Cardiac, Vascular, Small Parts, Pediatric, MSK |
| Maximum Scanning depth | 320mm |
| Convex probe | Frequency: 2.0, 3.0, 3.5, 4.0, 5.5MHZ |
| Vaginal probe | Frequency: 5.0, 6.0, 6.5, 7.5, 9.0MHZ |
| Linear probe | Frequency: 6.0, 6.5, 7.5, 10.0, 12.0MHZ |
| Micro-convex probe | R11 Frequency: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5, 7.5, 10.0MHZ R20 Frequency::5.0, 6.0, 6.5, 7.5, 9.0 MHZ |
| Phased array probe | Frequency: 2.0, 3.0, 3.5, 4.0, 5.0MHZ |
| 4D probe | Frequency: 2.0, 3.0, 3.5, 4.0, 5.5MHZ |
