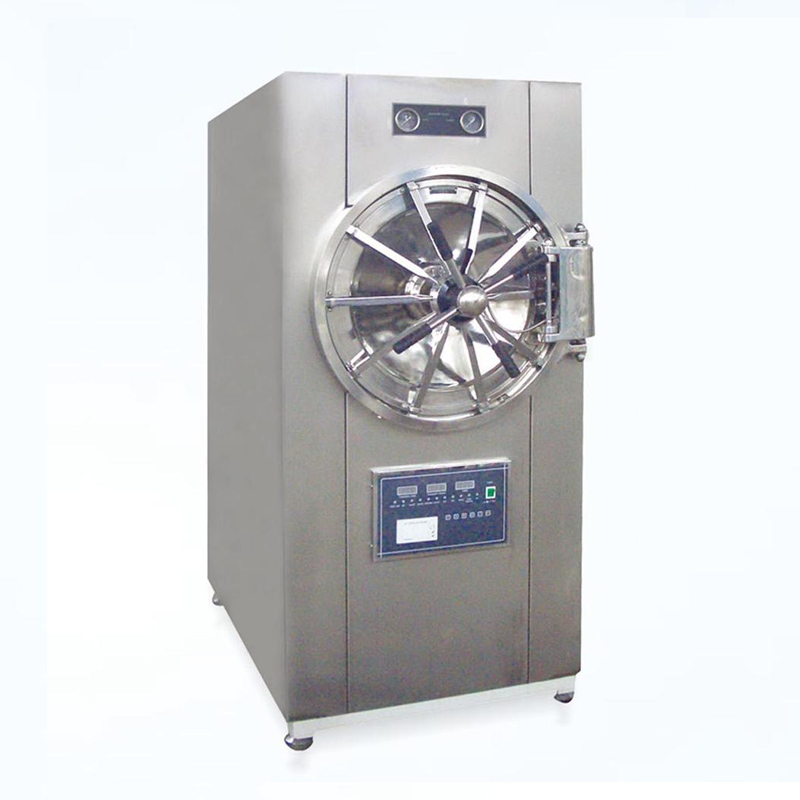

Horizontal Cylindrical Microcomputer Control Pressure Steam Sterilizer

Packaging Details:1set/wooden carton
Delivery Time: Shipped in 30 days after payment
Description:
  • Type:
  • Pressure Steam Sterilization Equipments
  • Brand Name:
  • HIPROVE
  • Model Number:
  • WS-150YDD
  • Place of Origin:
  • Shandong, China (Mainland)
  • Instrument classification:
  • Class I
  •
Packing:Export Standard     OEM service Available

description

Quick Details

Type:
    Pulse Vaccum type

Brand Name:
    JOYJUN

Model Number:
    WS-150YDD

Place of Origin:
    Shandong, China (Mainland)

Instrument classification:
    Class I

Supply Ability

Supply Ability:
    1000 Set/Sets per Month

Packaging & Delivery

Packaging Details
    1set/wooden case

Port
    Shanghai

Lead Time :
    15days



Horizontal Cylindrical Microcomputer Control Pressure Steam Sterilizer

Characteristics:
1.Sterilizing course automatic sterilization controlled by computer, easy to operate.
2.With drying function, suitable dressing drying.
3.With over-temperature, over-pressure auto-protect device.
4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn’t closed well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.
6.The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7.The chamber of the sterilizer is made of stainless steel.
8.With printer.

Technical Data:





Technical data

WS-150YDD

WS-200YDD

WS-280YDD

Sterilizing chamber

 volume

150L

φ440×1000mm

200L

φ515×1000mm

280L

φ600×1000mm

working pressure

0.22 MPa

working  temperature

134℃

Adjustment of temperature

40℃ - 134℃

Time of sterilization

0-99 min

Time of drying

0-99 min

Heat average

≤± 2℃

Power

9KW/380V 50Hz

9KW/380V 50Hz

12KW/380V 50Hz

Dimension

1400×650×1600

1400×750×1700

1520×910×1900

Transport dimension

1560×820×1820

1560×910×1880

1680×1080×2100

 G.W/N.W

430/340 KG

436/350 KG

570/462 KG
